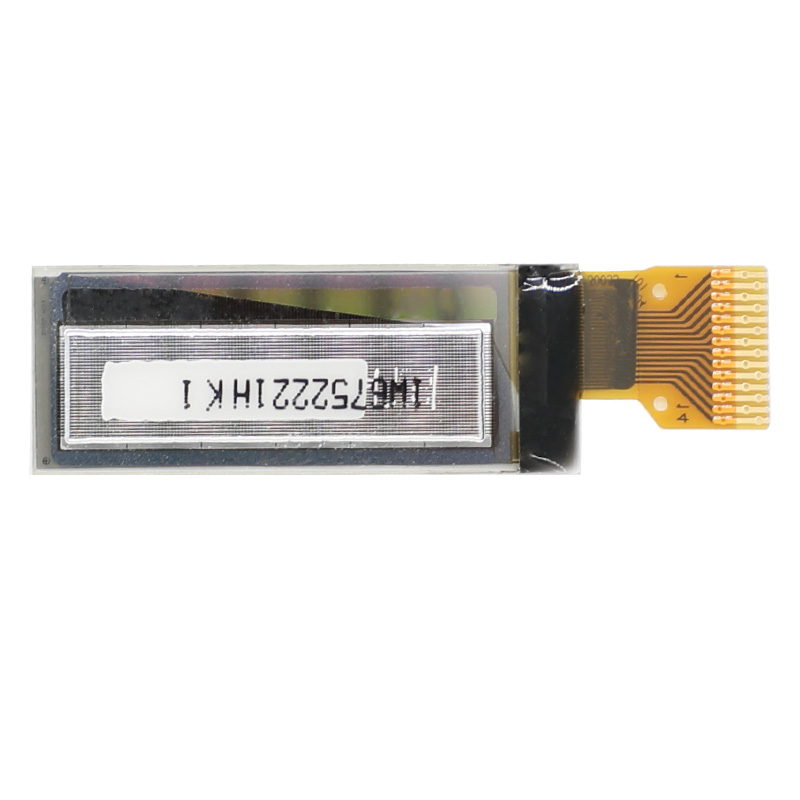

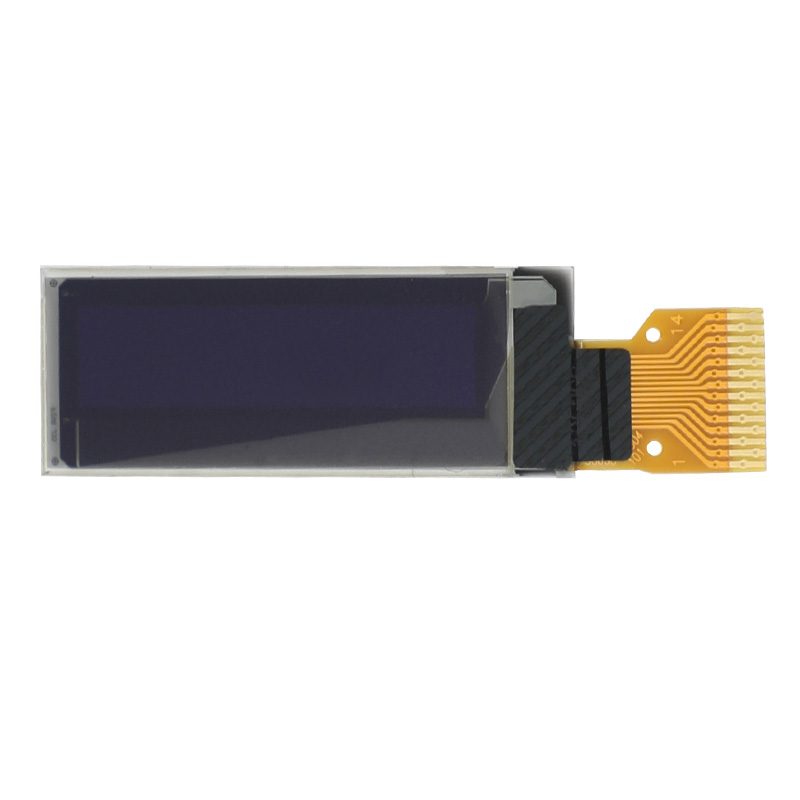

0.91 inch 128x32 Dots White OLED Display
- Model:OHEM12832-09
- PDF Doc: Download
- Add to inquiry
Product Description
Features:
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: White
Panel Matrix: 128*32
Driver IC: SSD1306BZ
Interface: I2C
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.21 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs
Mechanical Datas:
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 128(W) x 32(H) | dot |
| 2 | Dot Size | 0.159(W) x 0.159(H) | mm |
| 3 | Dot Pitch | 0.175(W) x 0.175(H) | mm |
| 4 | Active Area | 22.38(W) x 5.58(H) | mm |
| 5 | Panel Size | 30.00(W) x 11.50(H) | mm |
| 6 | Panel Thickness | 1.227 | mm |
| 7 | Module Size | 40.50(W) x 11.50(H) x 1.227(T) | mm |
| 8 | Diagonal A/A Size | 0.91 |
inch |
External Dimension
