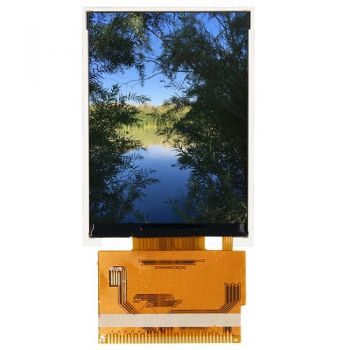

2.83 inch 240x320 TFT LCD display module



Product Description


Item:

2.83 inch TFT LCD display

Model No:

SHX280T37

Display Mode:

Normally White,Transmissive

Resolution:

240 x3 RGB x320

Crystal:

a-Si TFT active matrix

Color Filter Array:

R.G.B. Vertical Stripe

Outline Dimensions:(mm)

50.00(W) x 69.20H) x 2.90(D)

Active Area(mm):

43.20(W)x57.60(H)

Interface:

8bit and 16Bit

View Direction:

6 O'clock

Touch Panel:

Optional

Working temperature:

-10~60°C

Storage Temperature:

-20~+70°C


We have other sizes of TFT LCDs from 1.44 inch to 5.0 inch for your selction. Contact us Now!
