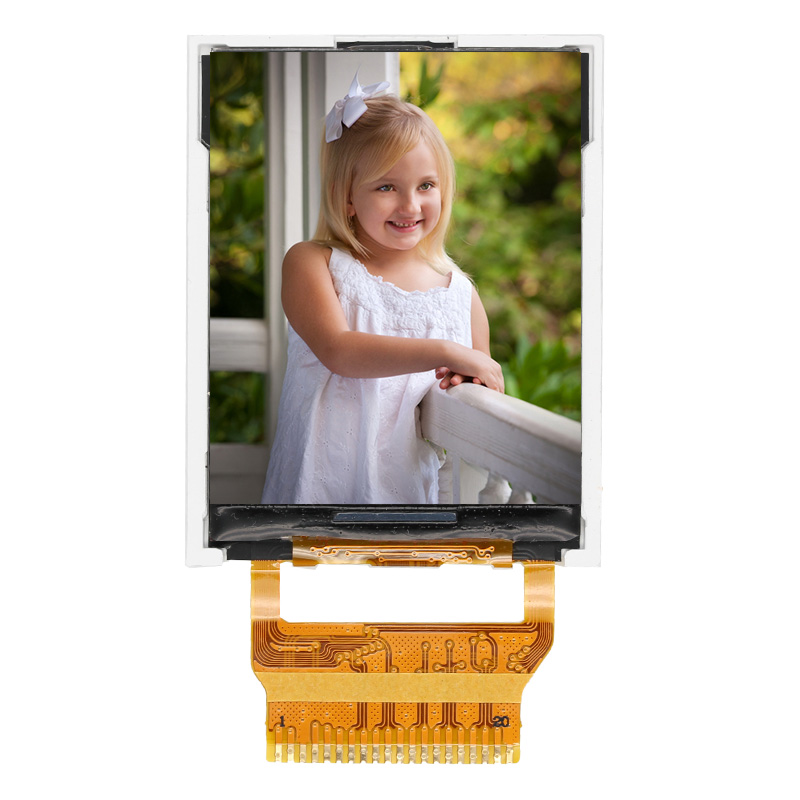

1.77 inch 128x160 TFT LCD display



Product Description


Item:

1.77 inch TFT LCD display

Model No:

ZH177G2003A

Display Mode:

Normally White,Transmissive

Resolution:

128 x RGB x 160

Crystal:

a-Si TFT active matrix

Color Filter Array:

R.G.B. Vertical Stripe

Outline Dimensions:(mm)

34.0(W) x 43.70(H) x 2.40 (D)

Active Area(mm):

28.032(H) x 35.04(V)

Interface:

MCU 8 bit

View Direction:

12 O'clock

Touch Panel:

Optional

Working temperature:

-10~60°C

Storage Temperature:

-20~+70°C


We have other sizes of TFT LCDs from 1.44 inch to 5.0 inch for your selction. Contact us Now!


Drawing and Specs:
