2.95 inch 1080RGBx1200 AMOLED Display

Model:AHEM0295-01
PDF Doc: Download
Add to inquiry

Product Description

Features:

Small molecular organic light emitting diode (OLED)
Self-luminous
Color: Full Color
Panel Matrix: 1080(RGB)*1200
Driver IC: RM67295

Interface: MIPI 4 lanes

Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.40 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs

Mechanical Datas:

NO	ITEM	SPECIFICATION	UNIT
1	Dot Marrix	1080(W) x RGB x 1200(H)	dot
2	Dot Pitch	23.2(W) x 46.4(H)	μm
3	Active Area	50.11(W) x 55.68(H)	mm
4	Panel Size	52.91(W) x 62.58(H)	mm
5	Panel Thickness	0.65	mm
6	Module Size	52.91(W) x 62.58(H) x 0.65(T)	mm
7	Diagonal A/A Size	2.95	inch

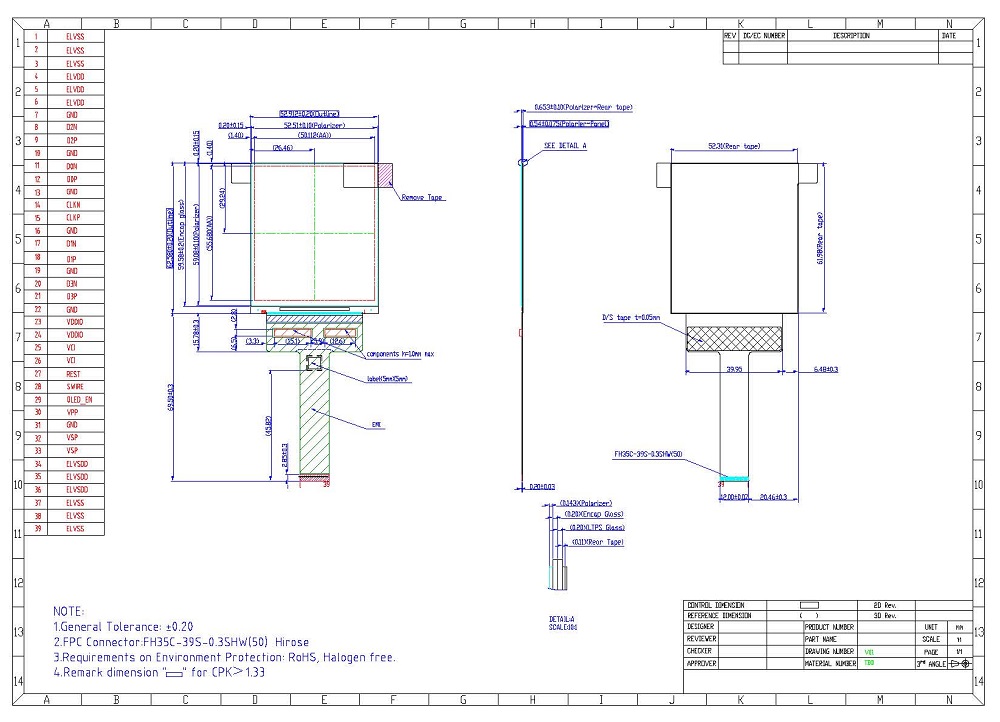

External Dimension:
