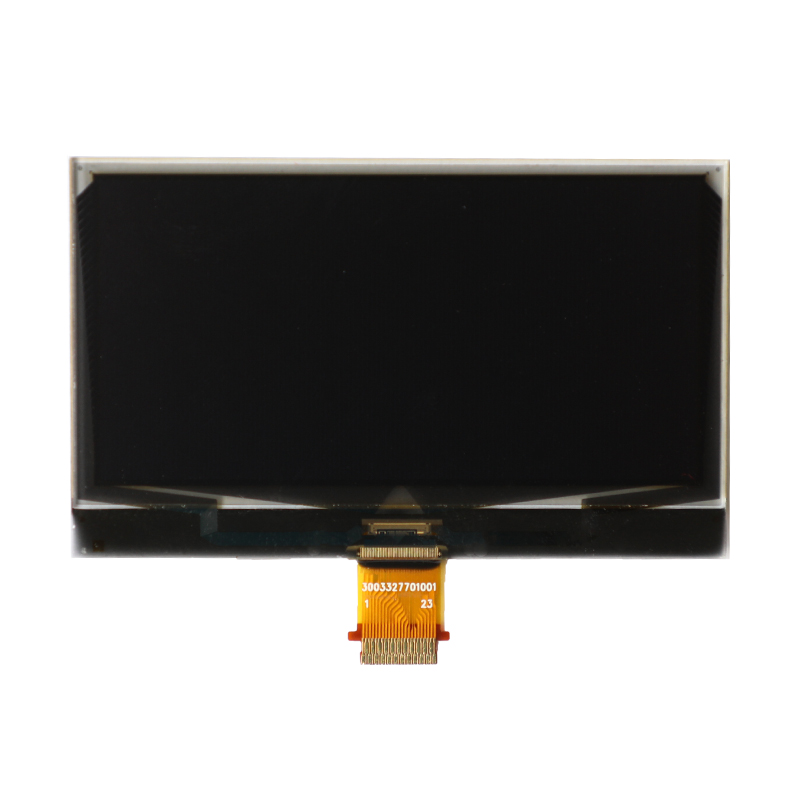

2.40 inch 128x64 Dots Yellow OLED Display
- Model:OHEM12864-09
- PDF Doc: Download
- Add to inquiry
Product Description
Features:
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: Yellow
Panel Matrix: 128*64
Driver IC: SPD0301
Interface: 8-bit 68xx/80xx Parallel, Serial Peripheral, I2C
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 1.40 mm
High contrast: 2000: 1
Wide viewing angel: 160°
Wide range operating temperature: -40 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Life Time: 12000 Hrs
Mechanical Datas:
| NO | ITEM | SPECIFICATION | UNIT |
| 1 | Dot Marrix | 128(W) x 64(H) | dot |
| 2 | Dot Size | 0.4(W) x 0.4(H) | mm |
| 3 | Dot Pitch | 0.43(W) x 0.43(H) | mm |
| 4 | Active Area | 55.01(W) x 27.49(H) | mm |
| 5 | Panel Size | 60.5(W) x 37(H) | mm |
| 6 | Panel Thickness | 2.027 | mm |
| 7 | Module Size | 60.5(W) x 47(H) x 2.027(T) | mm |
| 8 | Diagonal A/A Size | 2.40 |
inch |
External Dimension:
